USB 16-Channel 12Bit ADC Module for Data Acquisition with STM32 UART

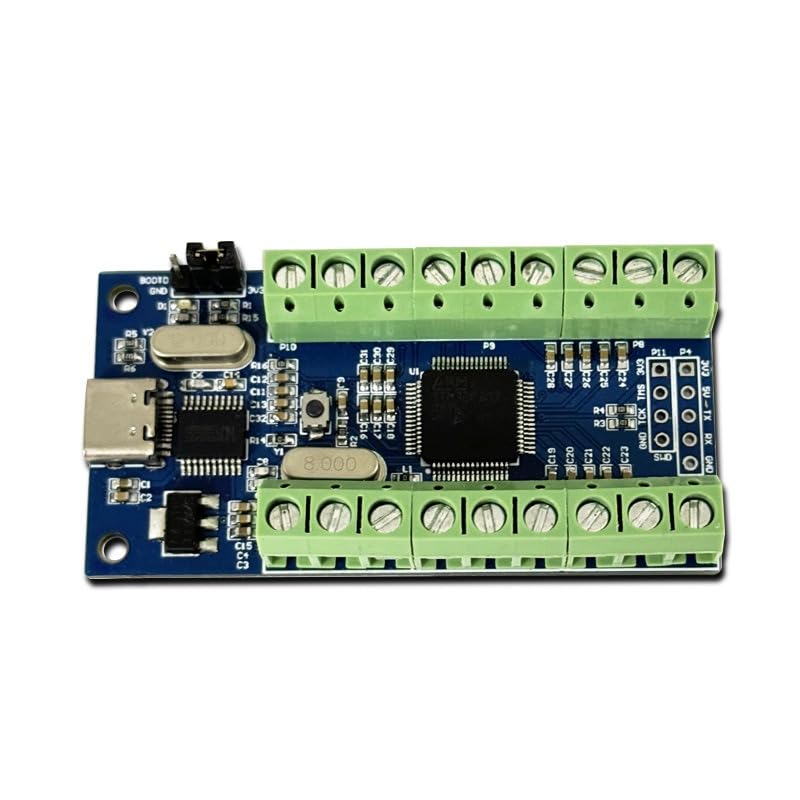

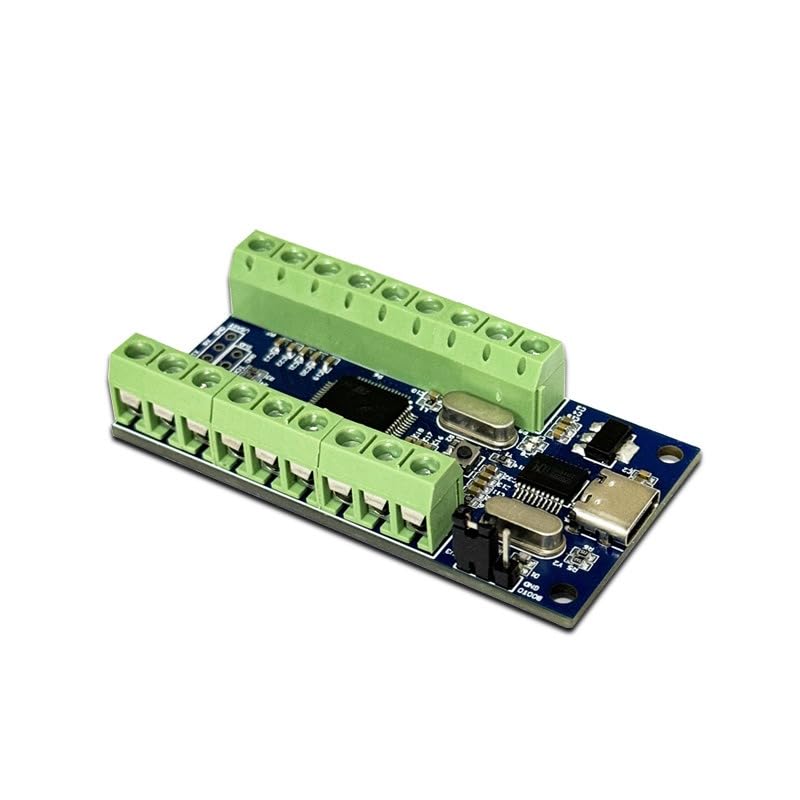

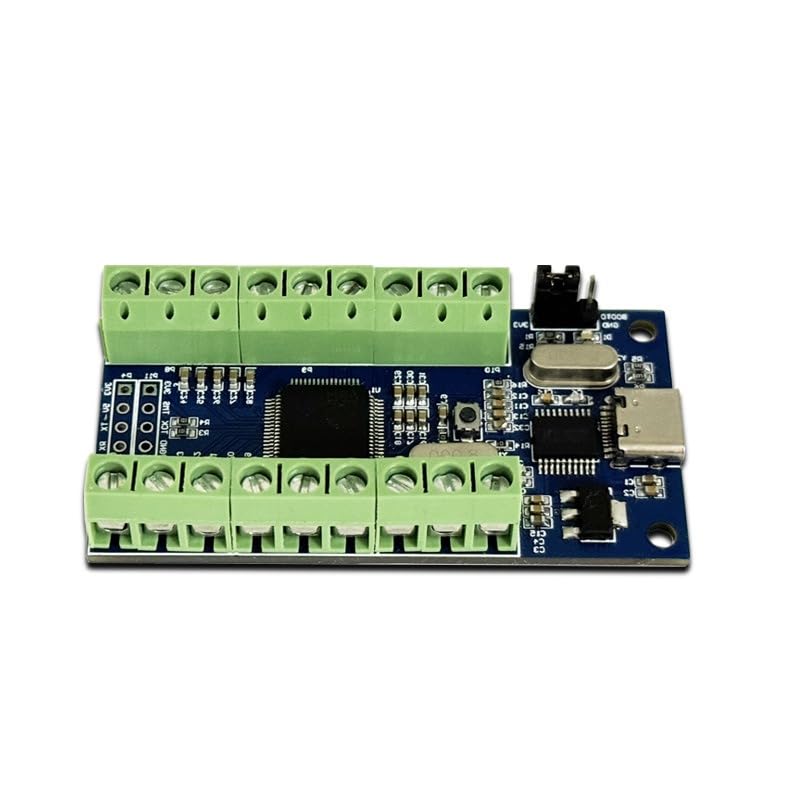

The STM32 16-channel ADC sampling module uses the internal 16-channel ADC resources of ST's STM32F103R8T6 microcontroller as the sampling core, and transfers the acquired sampling data to the memory through the internal DMA of STM32, which reduces the CPU burden and enhances the stability and accuracy of AD sampling. At the same time, the onboard USB to serial port chip CH340T can transmit data to the host computer, and users can use the TypeC data cable to burn the code. 1. ADC acquisition channel 8--channel 15 2. BOOT0 port: connect BOOT0 and 3V3 for burning mode and connect BOOT0 and GND for running mode 3. CH340T chip: USB to serial port 4. Type_C interface 5. Reset button 6. Linear regulator AMS111 7: used for 5V voltage to 3.3V voltage 7. ADC acquisition channel 0--channel 7 8. UART serial communication interface 9. SWD serial debugging interface 10. MCU: STM32F103R8T6

• High-Resolution Data Acquisition: The USB 16-Channel 12-Bit ADC Module delivers precise data acquisition with 12-bit resolution, making it ideal for applications requiring accurate measurements in various fields, including automation and instrumentation.
• Versatile Channel Configuration: With 16 channels available, this ADC module allows you to connect multiple sensors or signals simultaneously. It’s perfect for projects that demand flexible data collection and monitoring.
• Seamless STM32 Integration: Designed for easy integration with STM32 microcontrollers, this module utilizes UART communication, ensuring smooth data transfer and control in your embedded systems and projects.
• User-Friendly Interface: The module features a straightforward design with clear labeling and USB connectivity, making setup and operation simple for both beginners and experienced developers. Start capturing data in no time!
• Comprehensive Support Resources: Gain access to extensive documentation, example codes, and community support to assist you throughout your development process. Whether you're a novice or an expert, you'll find valuable resources to enhance your project.
